Every poster starts as an open scientific dataset — NASA satellites, ESA land surveys, OpenStreetMap. Not a rendering. Not an illustration. Measured, processed, printed.
See the shop on Etsy →
These posters start as real measurements: photons counted by a VIIRS sensor orbiting 824 km above the Earth, pixels classified by ESA's 10-metre land cover survey, coordinates queried live from OpenStreetMap. The pipeline that turns that data into a poster is versioned, reproducible, and city-agnostic. Every caption names the instrument, the archive, and the projection. Anyone can check.
The making of
Stage 01
The hardest decision in the project happened before a single line of code was written: what counts as real? Procedural generation, styled basemaps, data-driven illustrations — all of these exist, and none of them were what we wanted. The requirement we settled on was simple to state and hard to execute. Every data source has to be measured by a real instrument, published openly, and cite-able on the poster itself.
NASA Black Marble exists because a satellite called Suomi NPP has been circling Earth at 824 km every 101 minutes since 2011, and one of its instruments — the VIIRS Day/Night Band — is sensitive enough to detect a single lit street. That data is public domain. Anyone can download it. The commitment to use it, and only it, for the light was the whole design brief. Land cover comes from ESA WorldCover at 10 metre resolution. Ice cream shops come from OpenStreetMap. The city boundary comes from GADM. Nothing is invented.
Stage 02
The first time a completed poster run reveals a black rectangle where January should be, you have a decision to make. Interpolate the gap. Copy from the adjacent month. Run a smooth that quietly erases the hole. Every one of those choices would make the poster look more complete. We didn't do any of them.
The gap stays black. The poster caption carries a source disclosure that was added on the second poster made, not the first. The first one, we quietly used three nights from the previous year without saying so. That felt wrong. It hasn't happened again. The pipeline now builds a fallback ladder automatically — if a night is missing from 2024, step back to 2023, then 2022 — and the count goes on every poster.
A black tile is a night the satellite couldn't see through the clouds. It stays black.
Poster caption — source disclosure
Source mix: 342 nights from 2024 · 22 nights from 2023 · 1 night from 2022
Gaps indicate cloud cover or missing satellite data.
Fallback years are used when a given night is unavailable.
Every poster carries this line. It wasn't in the first one.
The aggressive caching means a run can be interrupted and resumed at any point without re-downloading anything. A pipeline that took six hours the first time takes two minutes the second.
Stage 03
A poster of Oslo in the default web mapping projection would make the city look about 40% wider than it actually is. Nobody who lives there would recognise it. The fix is cartographic: every poster is reprojected into a local UTM zone centred on the city, where shapes are correct at that location.
For a single city this is a one-time lookup. For 197 world capitals running unattended overnight, it had to be automatic. The formula turns out to fit in two lines. Oslo and Berlin are in adjacent UTM zones. Nairobi is in the southern hemisphere and gets a different offset. None of this appears anywhere on the finished poster. It's why the poster looks right.
Stage 04
The first version of the nighttime poster was on a white background, and it looked like a printout. Not a poster — a printout. The data rendered correctly, the colours mapped to the radiance values, but on white ground, light from a city at night becomes a grey blob with some orange highlights. It doesn't read as light.
The breakthrough was inverting it: start from black, and let the city emerge from the dark the way it actually looks from space. After that, every design decision became clearer. The colour ramp went through about a dozen iterations — early versions tried blue-to-white, then orange-to-white. What the data wanted was something colder in the midrange (where most city pixels live most of the time) and hotter only at the extremes: commercial cores, stadiums, event nights. Teal for the routine glow. Orange for when the city is really on. The ramp has been unchanged since the third poster.
Typography was slower. Bebas Neue for the city name because it reads as a label — assertive and geometric, not decorative. IBM Plex Mono for the caption because it should look like a specimen label from a scientific collection: instrument, satellite, archive, projection, in small grey monospace at the bottom of the frame.
When the data isn't a map

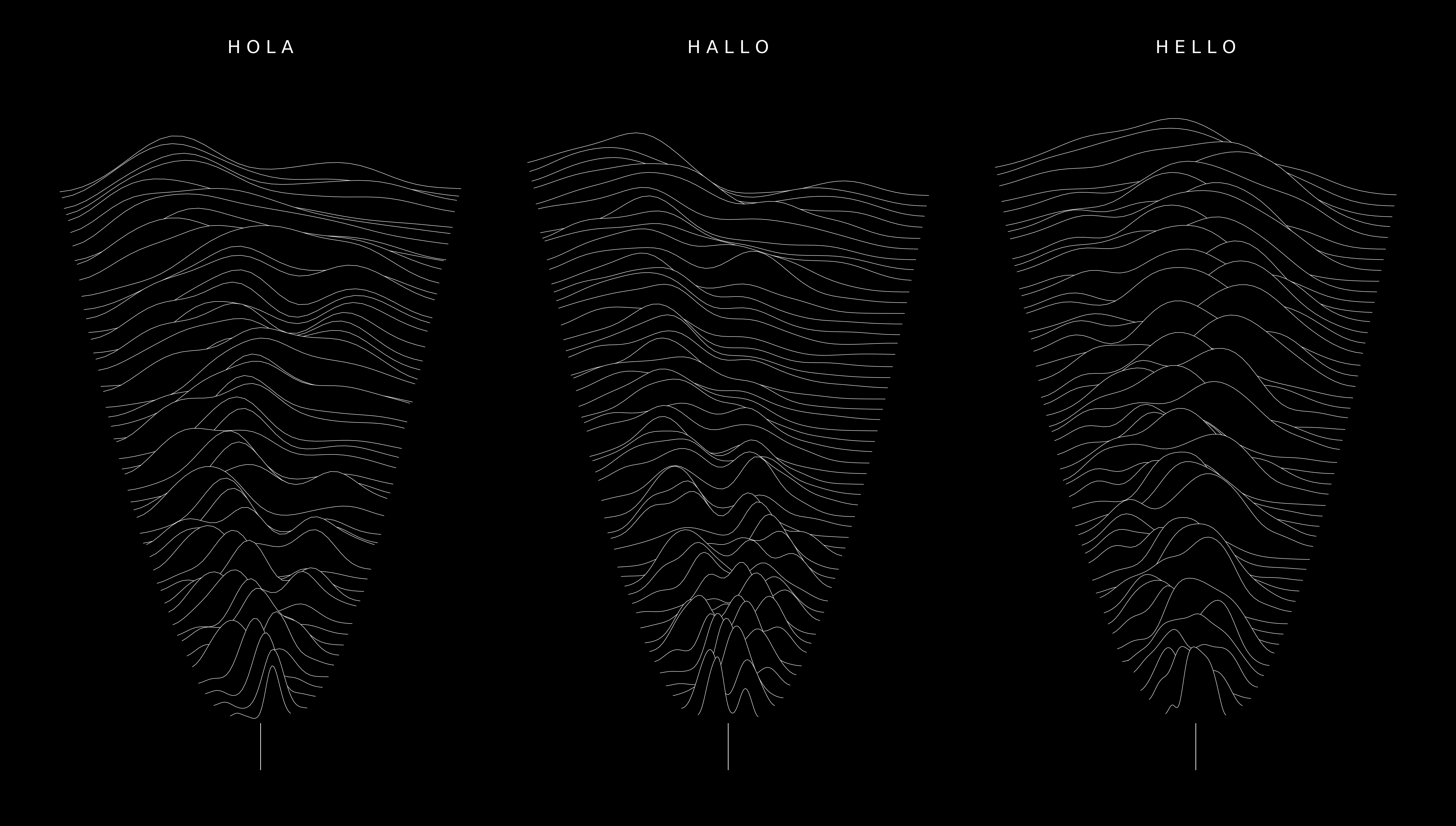

The same creative problem in a different domain: what does spoken language look like? The starting point was the Unknown Pleasures cover — Joy Division's 1979 album artwork, which is a stack of radio pulses from a pulsar, each emission offset upward into a ridge plot. That's the canonical data poster for sound, and it assumes regularity: the same width, the same time axis, stacked.
A spoken word doesn't have that shape. It starts in near-silence, builds as the consonant forms, widens through the vowel, then falls away. The bloom form came from asking what would happen if the ridgelines could grow with the sound — a narrow stem at the start that fans out as energy develops, like a plant opening. Hola, Hallo, Hello: the same concept in three languages. Spanish Hola is tight and staccato. German Hallo opens slowly, holds longer. English Hello stretches the vowel wide. Three different acoustic shapes from three versions of the same word.
The sounds for the final poster will be real voice recordings. The design question — what shape does spoken language want to be — was the interesting one.
Stage 05
The gap between a calibrated monitor and a piece of paper is wider than you expect. The first A0 test print came back on enhanced matte art paper and looked wrong. The blacks were dark grey. The teal gradient in the mid-brightness range — the range where most of the poster lives — was muddy and slightly brownish. The fine point lights of street clusters, which on screen read as crisp bright points on black, were slightly haloed from ink spreading into the paper fibres.
We tried lustre photo paper next (240 gsm, satin finish). The blacks came back. The contrast sharpened. But the satin coating had a mild sheen that competed with the subtle colour in the dark teal range and shifted how the gradient read under certain lights. The paper that finally worked was Global-Fap matte from Prodigi. It sounds like a compromise. It isn't: the specific coating on this paper holds black ink differently from standard matte, and the finished print looks almost exactly like the file. The blacks are deep. The teal is cold. The orange is warm. The output is a vector PDF at 300 DPI — a 60 × 80 cm poster is roughly 7,000 × 9,400 pixels — and Prodigi gets it print-ready from the R output directly.
Stage 06
When Berlin worked, it took about two minutes. When Oslo ran next, it also took about two minutes — and nothing city-specific was hardcoded. That was the moment the product changed: it wasn't a poster, it was a machine that makes posters.
Change the city name in a config file and the pipeline computes the UTM zone, downloads the boundary, fetches the satellite data, and renders. A batch runner reads a spreadsheet of 197 world capitals, writes a config for each, and runs them unattended overnight. 197 cities. Roughly six hours. Nothing that required human attention until it was done. The run is fully resumable — each output is skipped if it already exists, so interrupting and restarting costs nothing. The product isn't Berlin or Oslo. The product is: ask for a city, get a poster. Any city. Overnight.
# config.yml — swap one line to go from Berlin to Bogotá area: name: Berlin # ← change this country: Germany crs_projected: EPSG:32633 # ← auto-computed bbox_buffer: 0.12 output: width_in: 33.1 # A0 height_in: 46.8 dpi: 300
The series

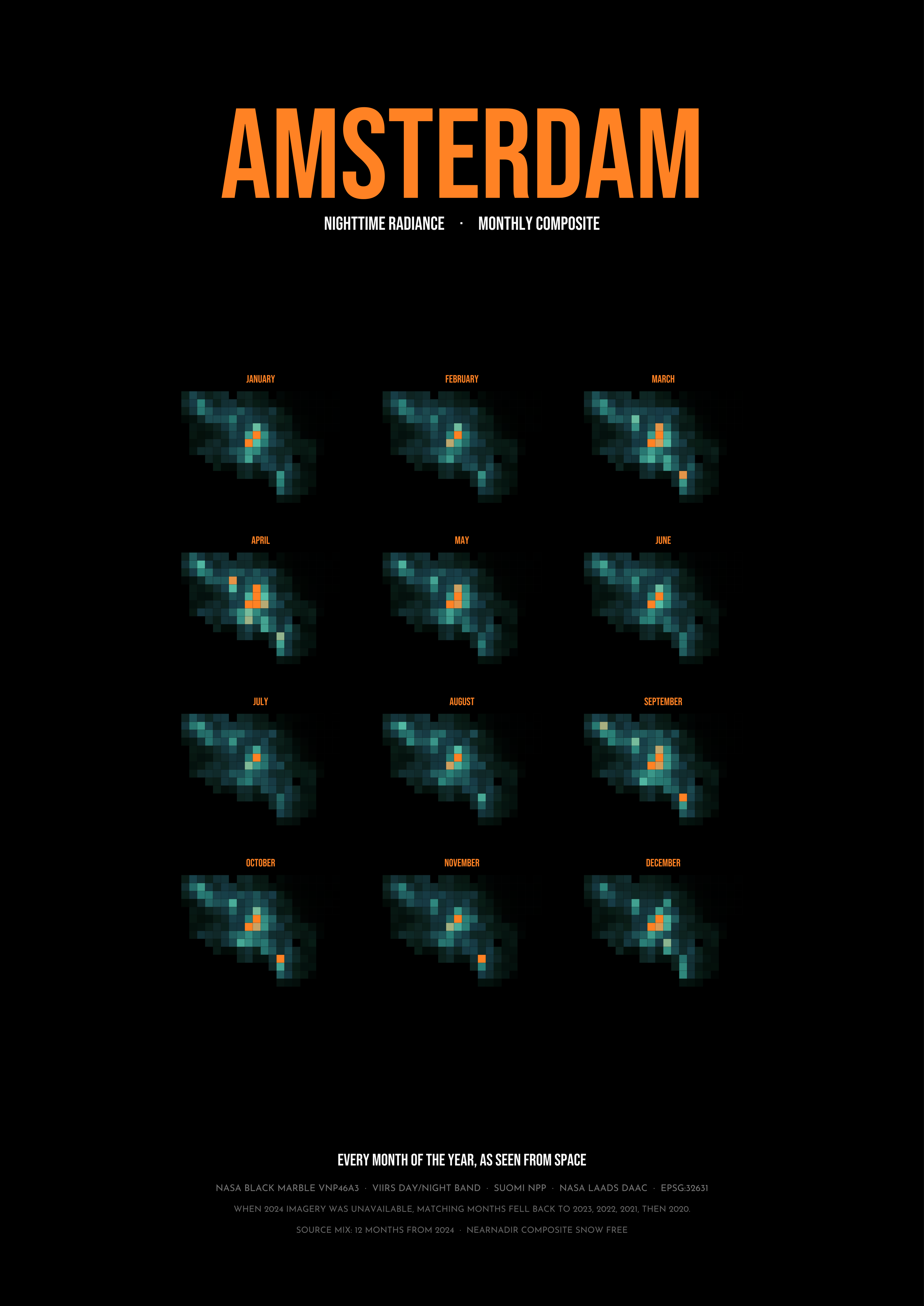

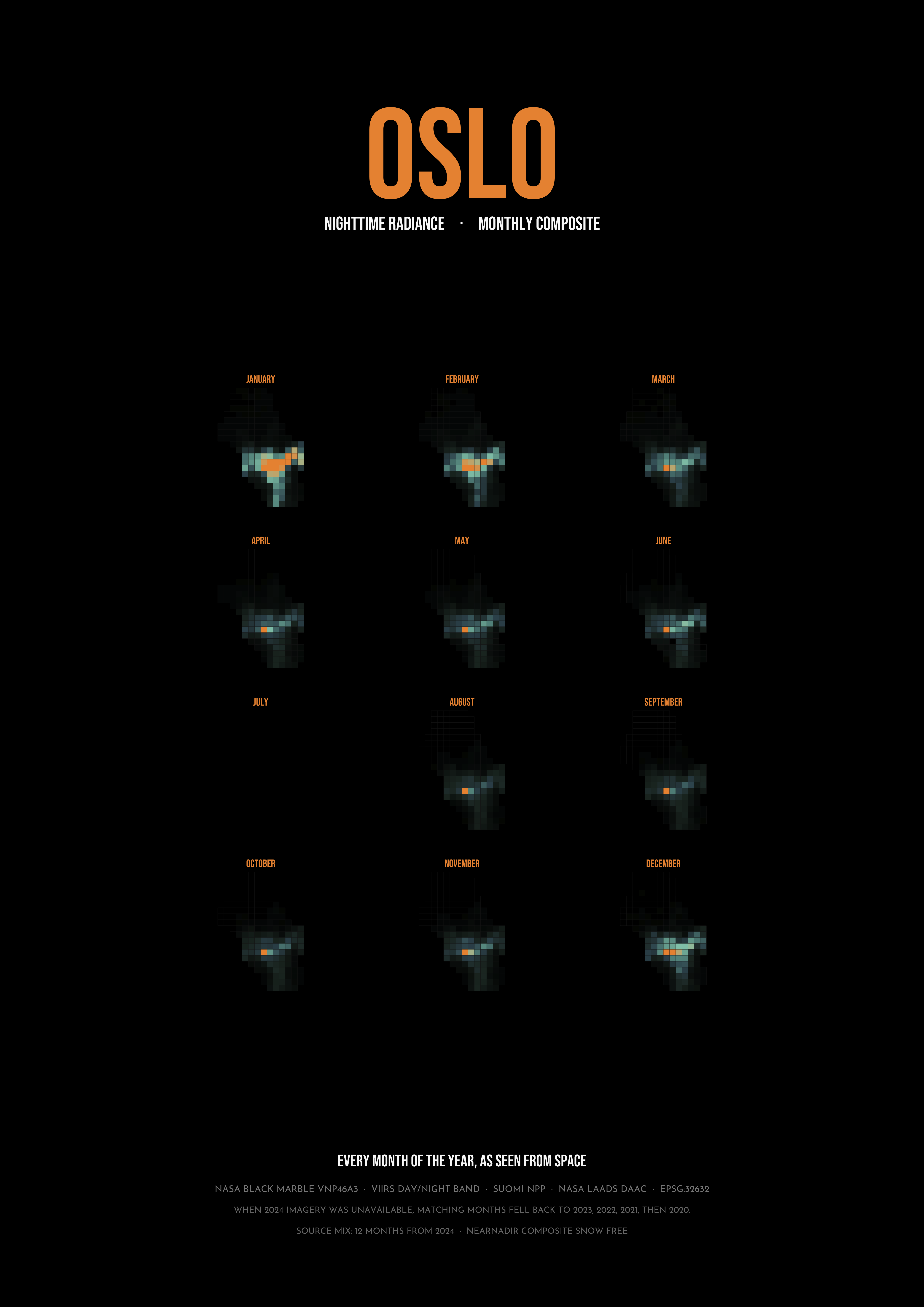

Nighttime Radiance
A city's glow, measured from orbit, across every month of the year. Twelve panels. Real cloud gaps. No smoothing.

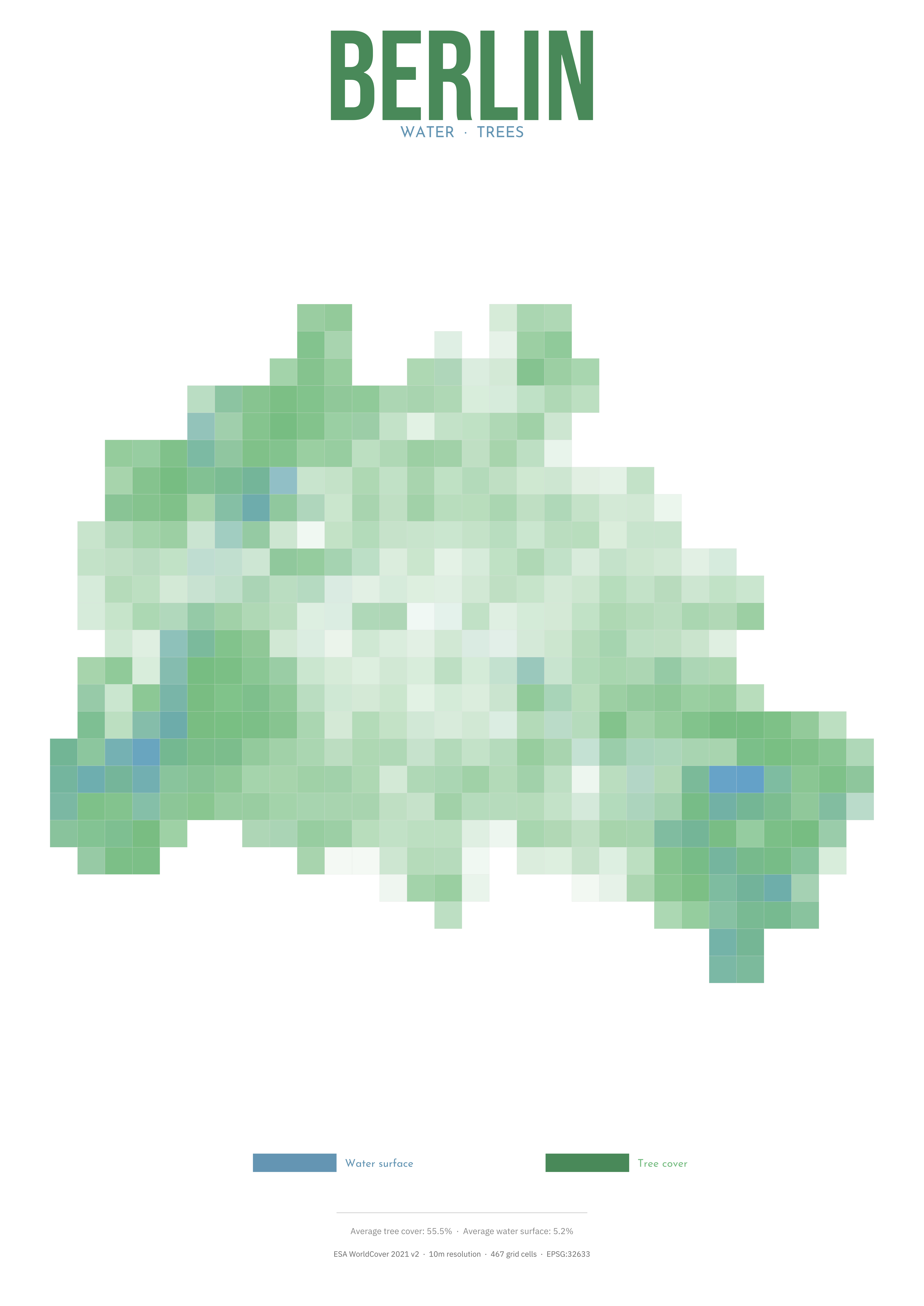

Land Cover — Water & Trees
The same city, but its ecology: blue for water, green for canopy, gridded by density. ESA WorldCover at 10 m resolution.
Ice Cream Map
Every ice cream shop in a city, plotted as coloured dots. 247 locations. 2.77 per km². Change two lines in the config and it maps bakeries, cafés, or anything else OpenStreetMap knows about.
Sound Posters
Audio as ridge plots — mel spectrograms rendered as stacked waves that grow wider as sound develops. Each word has a different shape.
The receipts
Datasets NASA Black Marble VNP46A2 (daily) · VNP46A3 (monthly composite) CC0 / public domain · commercial use with attribution No implied NASA endorsement ESA WorldCover 2021 v2 · 10 m resolution · CC BY 4.0 Tree cover = class 10 · Permanent water = class 80 OpenStreetMap © OpenStreetMap contributors · ODbL · Overpass API Boundaries GADM / Nominatim · cached as GeoPackage Instrument & orbit Sensor VIIRS Day/Night Band Satellite Suomi NPP · 824 km orbital altitude · polar orbit Archive NASA LAADS DAAC · bearer token · public domain Projection Source CRS EPSG:4326 (geographic, WGS84) Output CRS Local UTM zone · computed from city centroid Examples Berlin EPSG:32633 · Oslo EPSG:32632 · Nairobi EPSG:32737 Print specs Format A0 · 33.1 × 46.8 in · 84.1 × 118.9 cm Resolution 300 DPI · vector PDF (cairo_pdf) · ~7,000 × 9,400 px Gelato spec PDF/X-4 · GRACoL 2006 output intent · 4 mm bleed Prodigi spec RGB PDF · 300 DPI · print-ready from R output Paper Global-Fap matte · Prodigi · powerful black, almost like dark silk Fulfilment Network Prodigi print-on-demand · UK, EU, US facilities Inks Water-based, low-toxicity Paper sourcing Sustainably sourced Production model Printed to order · no overproduction · no unsold stock
